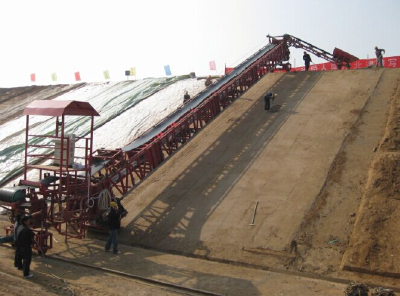

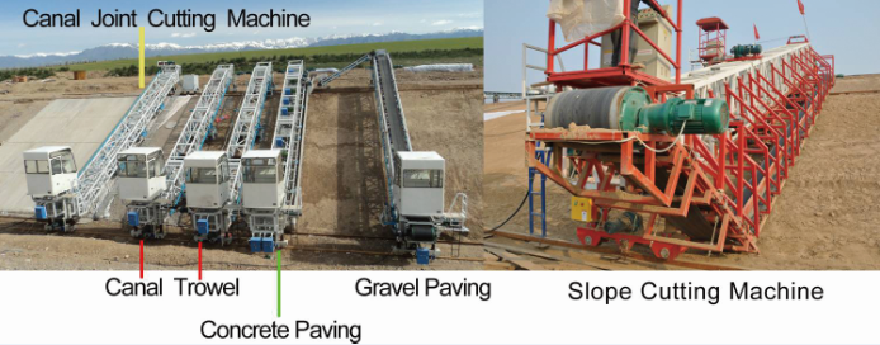

Canal Trowels (RWCQM11)
The machine is used to finish the working of concrete slurry and finishing.
The machine can avoid the problem of high-speed concrete hardness and low efficiency of human labor practice. It is labor saving, high efficiency and performance-reliable.
Working procedure: Firstly do the concrete-slurry work. The concrete carrying capacity is about 1KN/ square meter . Then do the concrete toweling work to increase the fineness of surface. The requirement of the carrying capacity for the concrete is about 3KN/ square meter
Features of the machine
1. The machine runs on a guide. It is easy to operate and keep the accuracy.
2. Use high modulus speed-reducing box, easy to maintain and with a long service life.
3. Extra-thickness quality blade, good performance and long life time.
4. It is easy and time-saving to switch slurry and finishing function.
5. OMRON/SIEMENS/LS electrical parts, excellent performance.
6. Truss connection, modular design, easy to adjust the length and the slope ratio to adapt the changes of canal.
Type | RWCQM11 |
Working |
|
Smoothing width | 2000mm |
Smoothing disc speed | 100rpm |
Running speed | 0 -95mm /sec |
Running method | Electric winch drawing |
Main motor power | According to slope length |
Running model | Manual |
Control method | Manual button |
Running system |
|
Roller diameter | φ 230 |
Roller driving method | Chain transmission |
Truss running speed | 0-5 |
Driving power | 2X2.2 |
Truss specification |
|
Suitable slope length | As per customer requirement |
Suitable slope ratio | As per customer requirement |
Elevating device | Hydraulic elevating/ by motor mechanically elevating |
Adjust mode of up and down | Manual / Automatic |
Device |
|
Motor | Chinese famous brand |
Main electric elements | OMRON /SIEMENS/LS |
Total power | According to specification details |
