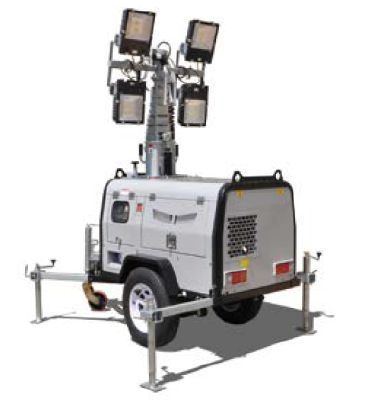

Trailer Light Tower RWZM61C (Elevated by Hydraulic)
It is normally used for night construction and other field operation in the sectors of municipal engineering, road, bridge, port, mining etc. Meanwhile, it also used on the occasion of night rush repairs and disaster relief site.
Main Features :
•Intelligent integrated control panel;
•External power receptacle;
•LED lamp, energy-saving and environment protection;
•Lantern support is controlled by electric push rod and can be adjusted to get a desired projection angle;
•Hydraulic elevating, manual controlled 340 rotation;
•Passed CE certificate.
| Model | RWZM61C |
| Illumination | |
| Power x lamp quantity | 150W×4 ( LED)/ 400Wx4 (Metal halide lamp) |
| Total Luminousness | 12000×4Lm/ 144000Lm |
| lamp | LED/ Metal halide lamp |
| Mast operation | 8 sections mast |
| Elevating height / Elevating mode | 8500mm / Hydraulic-operated |
| Support leg | Four hand adjustment support |
| Mast rotation angle | 340° |
| Anti-slop | <8° |
| Anti-wind | <6 |
| Engine | |
| Mode | Kohler KD350 |
| Type | Air cooled, 4 stroke, single cylinder, diesel engine |
| Power | 5.0kW |
| RPM | 3000rpm |
| Oil tank volume | 68L |
| Working temperature | -15℃-40℃ |
| Continuous working time | 35h/32h |
| Alternator | |
| Type | Linz SP10S E, Single-phase alternator |
| Frequency | 50Hz |
| Max. power | 4.5KVA |
| Rated power | 4KVA |
| Voltage | 230V |
| Battery | 12V 80Ah |
| Packing size | |
| Main machine | 2000*1400*2220 |
| Lamps | 880*590*520 |
| Weight | 995 kg |
