- Size: 2180x1440x2240mm
- Place of Origin: Shandong
- Brand Name: ROADWAY
- Model Number: RWZM62C
- Weight: 1580.000 kg

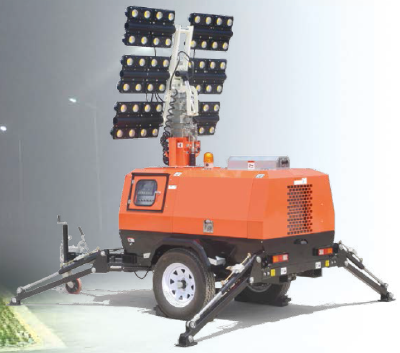

Trailer Light Tower (Elevated by Hydraulic)
It is normally used for night construction and other field operation in the sectors of municipal engineering, road, bridge, port, mining and construction etc. Meanwhile, it also used on the occasion of night rush repairs and disaster relief site.
Model | RWZM62C |
Illumination | |
PowerXlamp quantity | 400W×6 |
Total Luminousness | 36000x6 Lm s |
Lamp | LED |
Mast operation | 8 section mast |
Elevating height | 9050 mm |
Elevating mode | Hydraulic control |
Support leg | Four hand hydraulic adjustment support |
Mast rotation angle | 3 40 ° |
Anti-slop | < 8° |
Anti-wind | < 6 |
Tow ball | 2 inch |
Tyre | 15 inch |
Highest dragging speed | 80Km/h |
Engine | |
Mode | Perkins 403D-11G |
Type | Water-cooled, four stroke, three cylinder, diesel engine |
Power | 11.8Kw |
RPM | 1800rpm |
Oil tank volume | 120L |
Working temperature | -15° ~ 45° |
Alternator | |
Type | Sinocox SD160B |
Mode | DC alternator |
Max. power | 7.9KVA |
Rated power | 7.2KVA |
Voltage | DC48V |
Battery | 12V 120Ah |
Packing size | |
Main machine | 2180×1440×2240mm |
Lamp | 1250×1000×500mm |
Machine weight | 1580kg |
