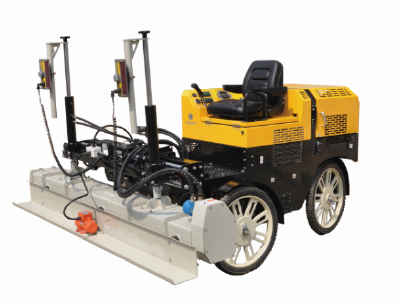

Ride on Concrete Laser Screed RWJP14
The Laser Screed is used in large area concrete construction, such as workshop, supermarket, warehouse, airport, and playground and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.
1) Use high accuracy laser device, close loop control technology and precision integrated hydraulic system, and microcomputer automatic control.
2) Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.
3) The Laser transmitter which measures the elevation is independent located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly.
4) The flat and dual slope can be fully automatic controlled by the transmitter. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used.
5) The forward-seated operation can widen operator vision, reduce the labor intensity and improve working efficiency
6) Steering, forward and reverse of the machine are all controlled by the integrated handles. Operation buttons and controller which are located on the one side of the seat, is user-friendly.
7) The machine with solid puncture-proof tire can do the screeding on the mat reinforcement.
8) The high-pressure cleaning system, can easily remove the concrete on the machine to insure the normal use and prolong the service life.
Model | RWJP14 |
Engine | |
Model | HONDA GX630 Electric start |
Type | Gasoline engine, air cooled, 4 stroke, OHV, double cylinder |
Power | 20hp/3600rpm |
Oil tank volume | 40L |
Lubricant L | 1.5L |
Fuel consumption | 313g/kWh |
Running device | |
Drive | 4 hydraulic drive motor |
Wheel | Solid puncture-proof tyre |
Running speed | 0-70m/min |
Screed system | |
Type | Swing type |
Width | 2500mm |
Paving type | With auger |
Auger force | Hydraulic motor |
Exciting force | 500N |
Vibration frequency | 50Hz |
Screed height | 350mm |
Laser control system | |
Control type | Microcomputer laser scan |
Control effect | Flat, slope or double slope(3D) |
Operation mode | |
Chair position | Ride-on forward type |
Forward and reverse | Hand grip control, stepless speed walking |
Steering | Hydraulic control |
Cleaning system | |
Power | Hydraulic motor |
Theoretical flow | 20L /min |
Rated power | 7Mpa |
Input port max water pressure | 0.5Mpa |
Hydraulic oil volume | 50L |
Size and weight | |
Working size | 2686 × 2631 × 2568mm |
Weight | 1200kg |
