- Size: 2300x1140x1700mm
- Place of Origin: Shandong
- Brand Name: ROADWAY
- Model Number: RWYL51CS
- Weight: 1700.000 kg

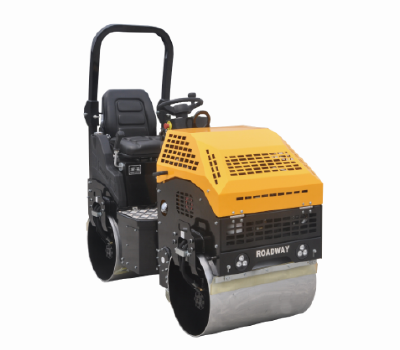

Technical specifications of RWYL51/RWYL51C/RWYL51BC
Type | RWYL51 | RWYL51C | RWYL51BC |
Run |
| ||
Speed | 0-8km/h | ||
Turning radius | 1900mm | ||
Climbing capacity in theory | 30% | ||
Compaction |
| ||
Static load forward/back | 70/75N/cm | 80/85N/cm | |
Nominal amplitude | 0.5mm | ||
Vibration frequency | 65Hz | ||
Exciting force | 22kN | 25kN | 2x25kN |
Water tank volume | 150L | ||
Working |
| ||
Drive | Variable plunger pump, constant displacement hydraulic motor | ||
Vibration | Gear pump, Gear motor | ||
Turning | Hydraulic steering | ||
Engine |
| ||
Model | HONDA, GX630 | Perkins 403D-11 | |
Type | Gasoline engine, air cooled,4stroke,OHV,double cylinder | Diesel engine, water-cooled, 4stroke, three cylinder | |
Power | 20hp/3600rpm | 25hp/2800rpm | |
Fuel tank volume | 30L | 30L | |
Lubricant L | 1.8L | 3.8L | |
Fuel consumption | 313g/kWh | 280g/kWh | |
Dimension | |||
Width of steel wheel | 900mm | ||
Diameter of steel wheel | 560mm | ||
Tread | 1340mm | 1420mm | |
Total length | 1980mm | 2080mm | |
Total width | 980mm | ||
Total height | 2230mm | 2230mm | |
Packing size | 2350x1140x1700mm | ||
Weight |
| ||
Working weight | 1480kg | 1700kg | |
