Product Details
- Size: 2140 x 470 x 390mm
- Place of Origin: Shandong
- Brand Name: ROADWAY
- Model Number: RWZY55X,RWZP90X,RWZP130X
- Weight: 213.000 kg

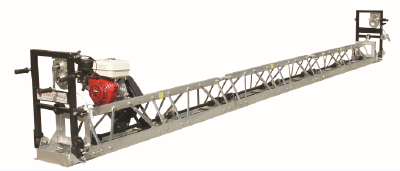

Concrete Vibratory truss screeds
The machine is mainly used to slurry extracting, compression, planing of the concrete in the field of road, workshop, quare and so on. The main frame is made of steel, which is firm and quake-proof. | |||
| Type | RWZP55X(≤)5500mm | RWZP90X(≤)8500mm | RWZP130X(≥)9000mm |
| Compaction | |||
| Nominal amplitude | 0.6mm | ||
| Vibrating frequency | 70Hz | ||
| Exciting force | 11kN/(≤)2000mm | ||
| Engine | |||
| Model | HONDA GX160 | HONDA GX270 | HONDA GX390 |
| Type | Gasoline engine,air cooled, 4stroke, OHV, single cylinder | ||
| Power | 5.5hp/3600rpm | 9.0hp/3600rpm | 13.0hp/3600rpm |
| Fuel tank volume | 3.6L | 6L | 6.5L |
| Lubricant L | 0.6L | 1.1L | |
| Fuel consumption | 313g/kWh | ||
| Dimension | |||
| 2m linker | 405mm x 2000mm | ||
| 1m single linker | 405mm x 1000mm | ||
| 0.5m single linker | 405mm x 250mm | ||
| Note, The chosen length of machine should be 500mm longer than real construction width. | |||
- Size: 2140 x 470 x 390mm
- Place of Origin: Shandong
- Brand Name: ROADWAY
- Model Number: RWZY55X,RWZP90X,RWZP130X
- Weight: 213.000 kg
