- Size: 1120x755x1100mm
- Place of Origin: Shandong
- Brand Name: ROADWAY
- Model Number: RWYL301
- Weight: 800.000 kg

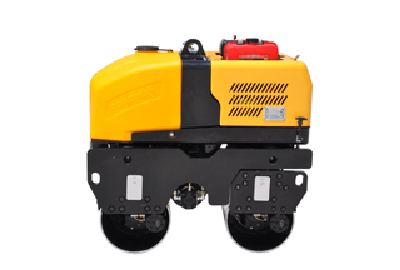

Remote Control Road Roller RWYL301/301C
This high-tech machine is a technological revolution in the field of road rollers which fill the national gaps. It can be operated by person leisurely.
1. With famous Honda engine.
2. With imported remote control system, automatic control, stable performance.
3. With imported hydraulic variable plunger pump and hydraulic motor.
4. Hydraulic steering.
5. Plastic water tank, free from corrosion and convenient for the water-spraying.
Type | RWYL301 | RWYL301C |
Run | ||
Speed | 1.2km/h(low), 3.6km/h(high) | |
Turning angle | 15° | |
Climbing capacity in theory | 25% | |
Compaction | ||
Static load forward/back | 50.2/52.2N/cm | 52/54N/cm |
Nominal amplitude | 0.5mm | |
Vibration frequency | 60Hz | |
Exciting force | 20kN | |
Engine | ||
Model | HONDA, GX390 | 186F |
Type | Gasoline engine, air cooled, 4stroke, OHV, single cylinder | Diesel engine, air cooled, 4stroke, vertical type, single cylinder |
Power | 13.0hp/3600rpm | 8.0hp/3600rpm |
Fuel tank volume | 6.5L | 5.5L |
Lubricant L | 1.1L | 1.7L |
Fuel consumption | 313g/kWh | 280g/kWh |
Dimension | ||
Width of steel wheel | 680mm | |
Diameter of steel wheel | 355mm | |
Tread | 650mm | |
Total length | 1120mm | |
Total width | 755mm | |
Total height | 1100mm | |
Weight | ||
Working weight | 848kg | 870kg |
