Hydraulic Roller with Dozer Blade RWYL51CT/RWYL51BCT

Hydraulic Roller with Dozer Blade RWYL51CT/RWYL51BCT

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 500 Units per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2011-07-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1980x980x2230mm
  • Place of Origin:  Shandong
  • Brand Name:  ROADWAY
  • Model Number:  RWYL51CT/ RWYL51BCT
  • Weight: 1700.000 kg

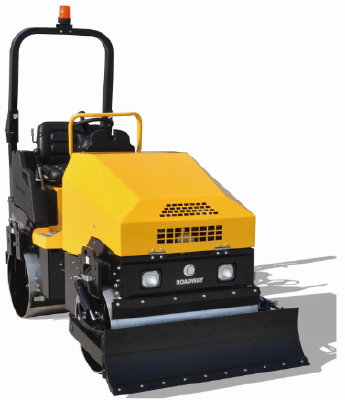

Dozer blade vibratory roller RWYL51CT / RWYL51BCT

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn. This is the latest model of light duty rollers in the domestic.

And it can use in the small area for paving and leveling.


Product characteristics

1. Imported Poclain hydraulic variable plunger pump, drives the machine stepless speed walking.

2. Steel drum vibrating is driven by imported motor and button controlled.

3. Double control levers with vibration button, makes the compaction of edge easy.

4. Integrated micro computer control plate, with operation, monitoring, alarm and other functions

5. Plastic water tank, free from corrosion and convenient for the water-spraying.

6. Electrically controlled water-spray, high efficient and water-saving.

7. LED lamp at front and rear for the convenience of night construction.



Type

RWYL51CT                                  RWYL51BCT

Run


Speed

0-8km/h

Turning radius

1900mm

Climbing capacity in theory

30%

Compaction


Static load forward/back

80/85N/cm

Nominal amplitude

0.5mm

Vibration frequency

65Hz

Exciting force

25kN                                            2x25kN

Water tank volume

150L

Working


Drive

Variable plunger pump, radial plunger hydraulic motor

Vibration

Gear pump, Gear motor

Turning

Hydraulic steering

Engine


Model

Perkins 403D-11

Type

Diesel engine, water-cooled, 4stroke, three cylinder

Power

25kW/2800rpm

Fuel tank volume

30L

Lubricant L

3.8L

Fuel consumption

281g/kWh

Dimension


Width of steel wheel

900mm

Diameter of steel wheel

560mm

Total length

1980mm

Total width

980mm

Total height

2230mm

Tread

1340mm

Packing size

2300×1140×1700mm

Weight


Working weight

1700kg

  • Size:  1980x980x2230mm
  • Place of Origin:  Shandong
  • Brand Name:  ROADWAY
  • Model Number:  RWYL51CT/ RWYL51BCT
  • Weight: 1700.000 kg
