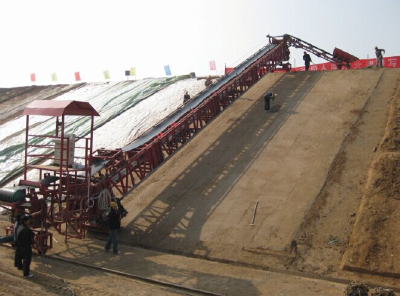

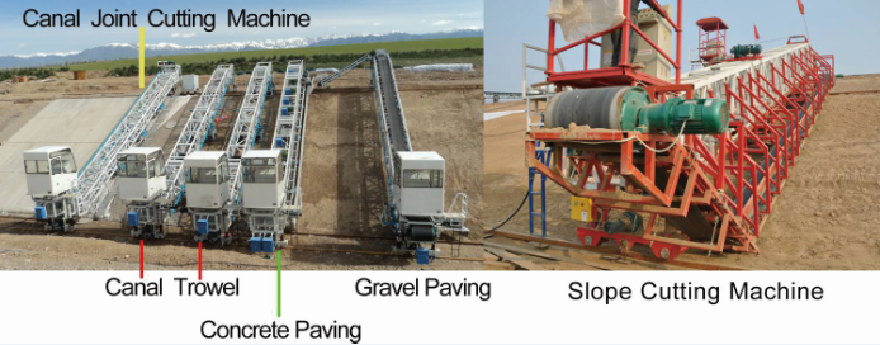

Canal Joint Cutting Machine (RWCQG12)
This machine is used to finish the cutting and process work of the joint and is applicable to concrete with intensity above 60%, the joint width less than 2cm . The machine is mainly used to cut and level to the semi-hard or hard canal surface. (the hardness of surface should be less than 50KN/ square meter ).
It replaces human labor to avoid the risk when worker walk on the slope. Besides, it is time and labor saving, high efficiency and performance-reliable.
The features of the machine
1. The machine is track-mounted, easy to operate and keep the accuracy. No need the assistance of other workers and more safe operate.
2. The perpendicular and horizontal cutters work one by one, continuously and high efficiency.
3. Manual and semi-automatically operated, easy to adjust according the practical condition.
4. The cutting depth can be set automatically to protect the inner structure of the concrete.
5. The universal cutting blade, diamond cutting head, is suitable for the cutting of concrete and with high efficiency.
6. OMRON/SIEMENS/LS electrical parts, excellent performance.
7. Truss connection, modular design, easy to adjust the length and the slope ratio to adapt the changes of channel
Type | RWCQG12 |
Working | |
Cutting depth | 0 -170mm |
Cutting width | 5 -20mm (can be adjustable) |
Vertical cutting speed | 800mm/min |
Vertical cutting quantity | According to specification details |
Horizontal cutting speed | 800mm/min(Frequency control) |
Horizontal cutting moving mode | Electric winch drawing |
Horizontal cutting quantity | 1 or 2 Unit |
Cutter elevating model | Electric handspike motor |
Electric handspike motor journey | 0 -200mm |
Elevating speed | 20mm /sec |
Push-pull effort | 250 kg |
Electric handspike motor power | 180W |
Running model | Automatic, semi-automatic, manual |
Control mode | Programmable controller |
Running system | |
Roller diameter | φ230mm |
Roller driving mode | Chain transmission |
Elevating device | Hydraulic elevating/ by motor mechanically elevating |
Adjust mode of up and down | Manual / Automatic |
Truss | |
Suitable slope length | As per customer requirement |
Suitable slope | As per customer requirement |
Driving power | 2X2.2kw |
Device | |
Motor | Chinese famous brand |
Main electric elements | OMRON / SIEMENS |
Total power | According to specification details |
