- Size: 650mm
- Place of Origin: Shandong
- Brand Name: ROADWAY
- Model Number: RWCQX12
- Weight: 2000.000 kg

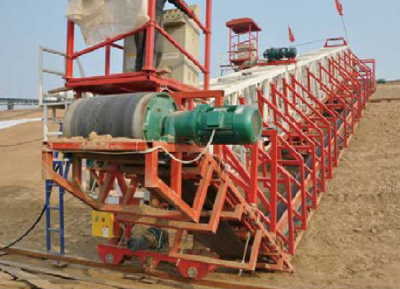

Canal Slope Cutting Machine, Canal Equipment
It is used to make rough face to fine face and to up to the desired accuracy. This machine is applicable to soft or semi-soft materials(the hardness of surface should be less than 50KN/m2) , the thickness should be less 12cm,
The traditional slope-cutting method is using excavator, which has high technical requirement for the operator, labor-costing, performance-unreliable and easy affected by environment.
The features of the machine
1. Track-mounted walking, operation simple, earth-loosing and conveying simultaneously, high efficient.
2. Working chains and scraper conveyor transport the surplus materials to the desired location maximum.
3. Truss connection, modular design, easy to adjust the length and the slope ratio to adapt the changes of canal.
4. Running motor soft started to make the trusses walking steadily.
5. OMRON/SIEMENS/LS electrical parts, excellent performance;
6. The working chain is duplex design with high strength and ensures synchronization.
The chains operate along guide track, stably and with high accuracy.
Type | RWCQX12 |
Working | |
Working length | 650mm |
Scarifier revolution | 330r/min |
Conveyer belt specification | 600*10mm |
Grade I transport power | 2.2kw |
Grade II transport power | According to slope length |
Feeding speed | 1.6m/sec |
Driving mode | Wire rope driving |
Driving power | According to slope length |
Driving speed | 0-5m/min |
Wire rope specification | 12mm |
Running model | Manual, semi-automatic |
Control method | Manual button |
Running device | |
Running mode | Railway walking |
Roller diameter | Φ230mm |
Roller driving mode | Chain transmission |
Running speed | 0-5m/min |
Running motor | 2X2.2kw |
Truss | |
Suitable slope length | As per customer requirement |
Suitable slope ratio | As per customer requirement |
Elevating device | Hydraulic elevating/ by motor mechanically elevating |
Adjust mode of up and down | Manual / Automatic |
Device | |
Motor | Chinese famous brand |
Main hydraulic elements | EATON |
Main electrical elements | OMRON/SIEMENS/LS |
Total power | According to specification details |
